Hunter检测分析之（OverlayFS System）

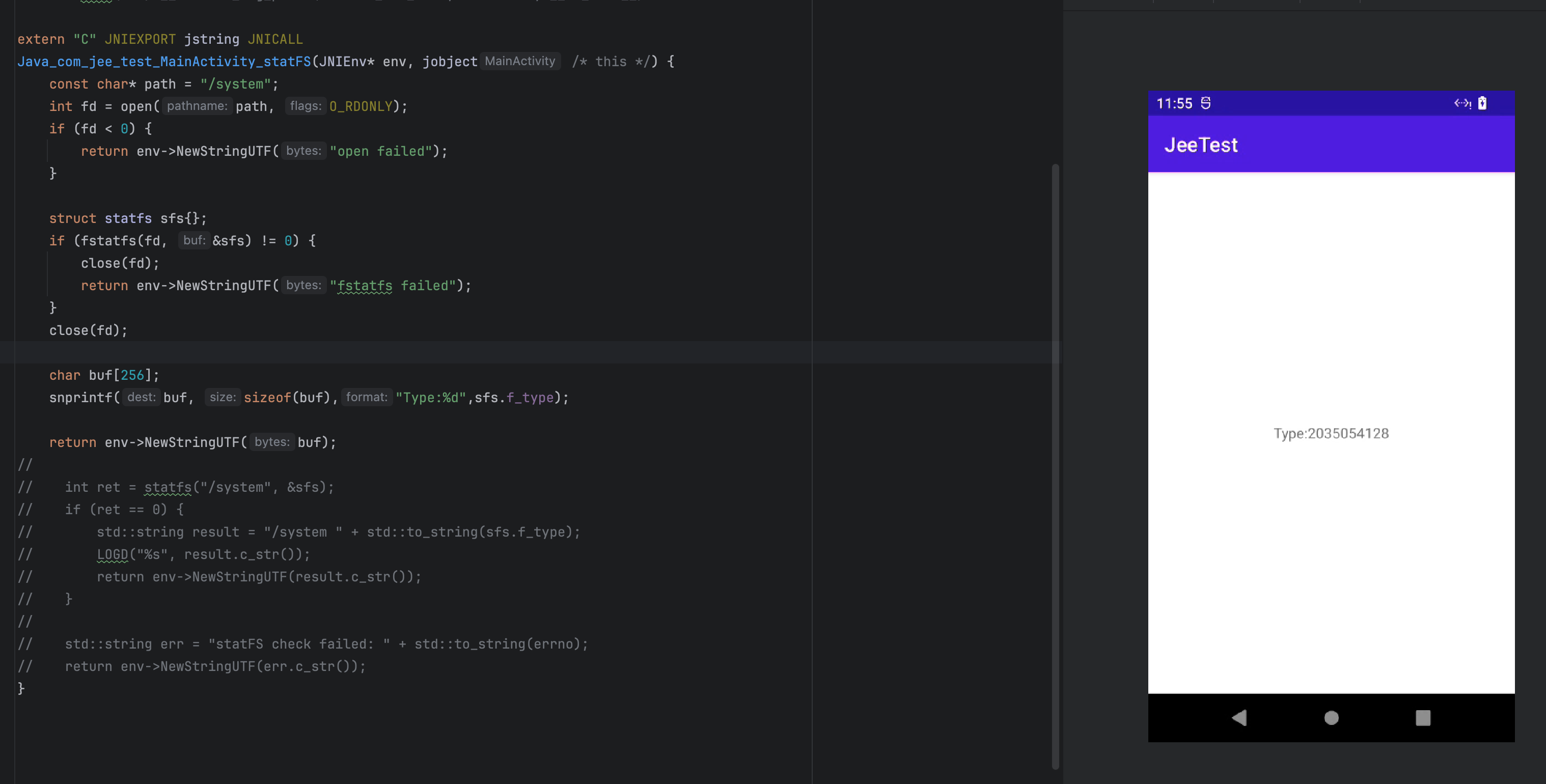

hunter的这个overlay system检测不是必要的，一开始推测检测原理就是在native 拿 statfs和fstatfs函数查看/system返回的f_type

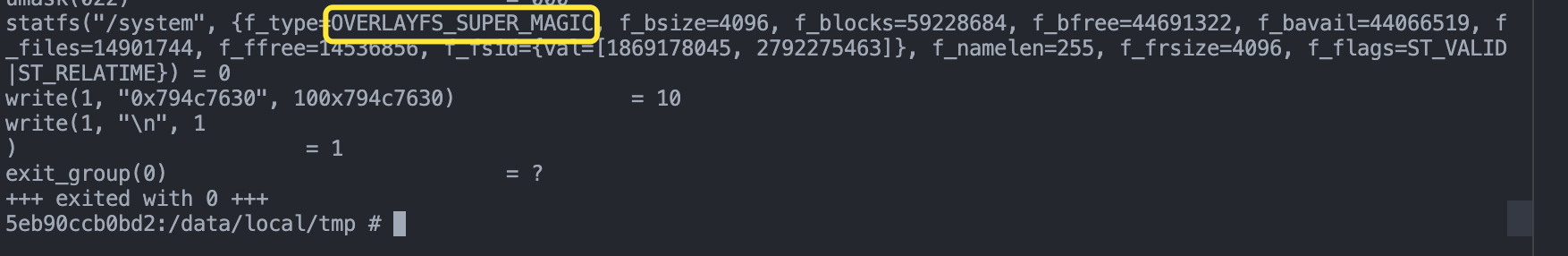

10进制的2035054128对应的16进制是 0x794C7630 也就是overlayFS的魔数（magic number 这个专业术语我也不知道是什么）

5eb90ccb0bd2:/data/local/tmp # stat -f -c %T /system
0x794c7630

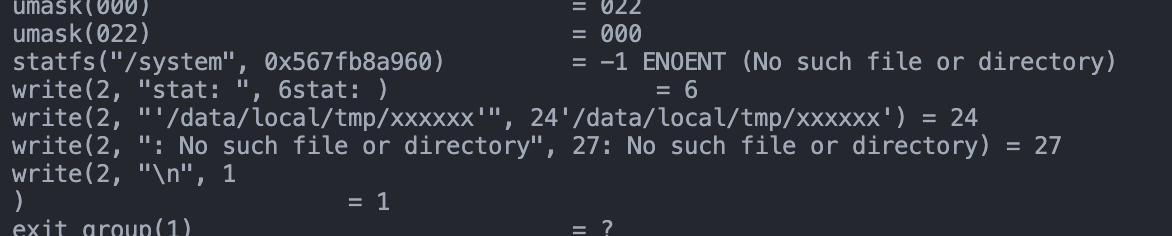

strace一下再拿ebpf处理一下就ojbk了

牛头也检测，但是方法和hunter有些区别

root@orangepi5pro:~/ebpf# cat /sys/kernel/debug/tracing/available_events | grep statfs
syscalls:sys_exit_fstatfs
syscalls:sys_enter_fstatfs
syscalls:sys_exit_statfs
syscalls:sys_enter_statfs
root@orangepi5pro:~/ebpf# cat /sys/kernel/debug/tracing/events/syscalls/sys_enter_statfs/format
name: sys_enter_statfs
ID: 735
format:
        field:unsigned short common_type;       offset:0;       size:2; signed:0;
        field:unsigned char common_flags;       offset:2;       size:1; signed:0;
        field:unsigned char common_preempt_count;       offset:3;       size:1; signed:0;
        field:int common_pid;   offset:4;       size:4; signed:1;

        field:int __syscall_nr; offset:8;       size:4; signed:1;
        field:const char * pathname;    offset:16;      size:8; signed:0;
        field:struct statfs * buf;      offset:24;      size:8; signed:0;

print fmt: "pathname: 0x%08lx, buf: 0x%08lx", ((unsigned long)(REC->pathname)), ((unsigned long)(REC->buf))

光这一个点位还不够 fstats 也需要操作，ctx->arg[1] 是一个statfs的指针结构体，这个偷不了懒了，涉及到的syscall操作比较多，需要先用enter_openat判断路径存入hash_map，再去和enter_fstats和exit_fstats配合，exit的时候在hash_map里取出地址修改buf里的type，statfs的结构在这里能看到，最后在exit_fstats清理掉map

https://elixir.bootlin.com/linux/v5.10/source/arch/mips/include/uapi/asm/statfs.h#L23

cat /sys/kernel/debug/tracing/events/syscalls/sys_exit_fstatfs/format                                                  <
name: sys_exit_fstatfs
ID: 732
format:
        field:unsigned short common_type;       offset:0;       size:2; signed:0;
        field:unsigned char common_flags;       offset:2;       size:1; signed:0;
        field:unsigned char common_preempt_count;       offset:3;       size:1; signed:0;
        field:int common_pid;   offset:4;       size:4; signed:1;

        field:int __syscall_nr; offset:8;       size:4; signed:1;
        field:long ret; offset:16;      size:8; signed:1;

print fmt: "0x%lx", REC->ret

cat /sys/kernel/debug/tracing/events/syscalls/sys_enter_fstatfs/format                                                 <
name: sys_enter_fstatfs
ID: 733
format:
        field:unsigned short common_type;       offset:0;       size:2; signed:0;
        field:unsigned char common_flags;       offset:2;       size:1; signed:0;
        field:unsigned char common_preempt_count;       offset:3;       size:1; signed:0;
        field:int common_pid;   offset:4;       size:4; signed:1;

        field:int __syscall_nr; offset:8;       size:4; signed:1;
        field:unsigned int fd;  offset:16;      size:8; signed:0;
        field:struct statfs * buf;      offset:24;      size:8; signed:0;

print fmt: "fd: 0x%08lx, buf: 0x%08lx", ((unsigned long)(REC->fd)), ((unsigned long)(REC->buf))

#include <vmlinux.h>
#include <bpf/bpf_helpers.h>
#include <bpf/bpf_core_read.h>

// 简化版 只做可行性验证

struct {
    __uint(type, BPF_MAP_TYPE_HASH);
    __uint(max_entries, 128);
    __type(key, unsigned int);
    __type(value, u64);
} fstatfs_map SEC(".maps");

SEC("tracepoint/syscalls/sys_enter_fstatfs")
int tracepoint__syscalls__sys_enter_fstatfs(struct trace_event_raw_sys_enter *ctx)
{
    struct task_struct *task = (struct task_struct *)bpf_get_current_task();
    unsigned int pid_ns = get_namespace_pid(task);

    if(pid_ns != filter_ns){
        return 0;
    }

    u32 pid = bpf_get_current_pid_tgid() >> 32;

    u64 statfs_addr = (u64)ctx->args[1];
    bpf_map_update_elem(&fstatfs_map, &pid, &statfs_addr, BPF_ANY);

    return 0;
}

SEC("tracepoint/syscalls/sys_exit_fstatfs")
int tracepoint__syscalls__sys_exit_fstat(struct trace_event_raw_sys_exit *ctx)
{
    struct task_struct *task = (struct task_struct *)bpf_get_current_task();
    unsigned int pid_ns = get_namespace_pid(task);

    if(pid_ns != filter_ns){
        return 0;
    }

    u32 pid = bpf_get_current_pid_tgid() >> 32;

    u64 *statfs_addr = bpf_map_lookup_elem(&fstatfs_map, &pid);
    if(!statfs_addr){
        return 0;
    }

    struct statfs statfs;
    int ret = bpf_probe_read_user(&statfs, sizeof(statfs), (const void *)*statfs_addr);

    if(statfs.f_type == 2035054128){
        statfs.f_type = 0xef53;
        bpf_probe_write_user((void *)*statfs_addr, &statfs, sizeof(statfs));
    }

    bpf_map_delete_elem(&fstatfs_map, &pid);
    return 0;
}

char LICENSE[] SEC("license") = "GPL";

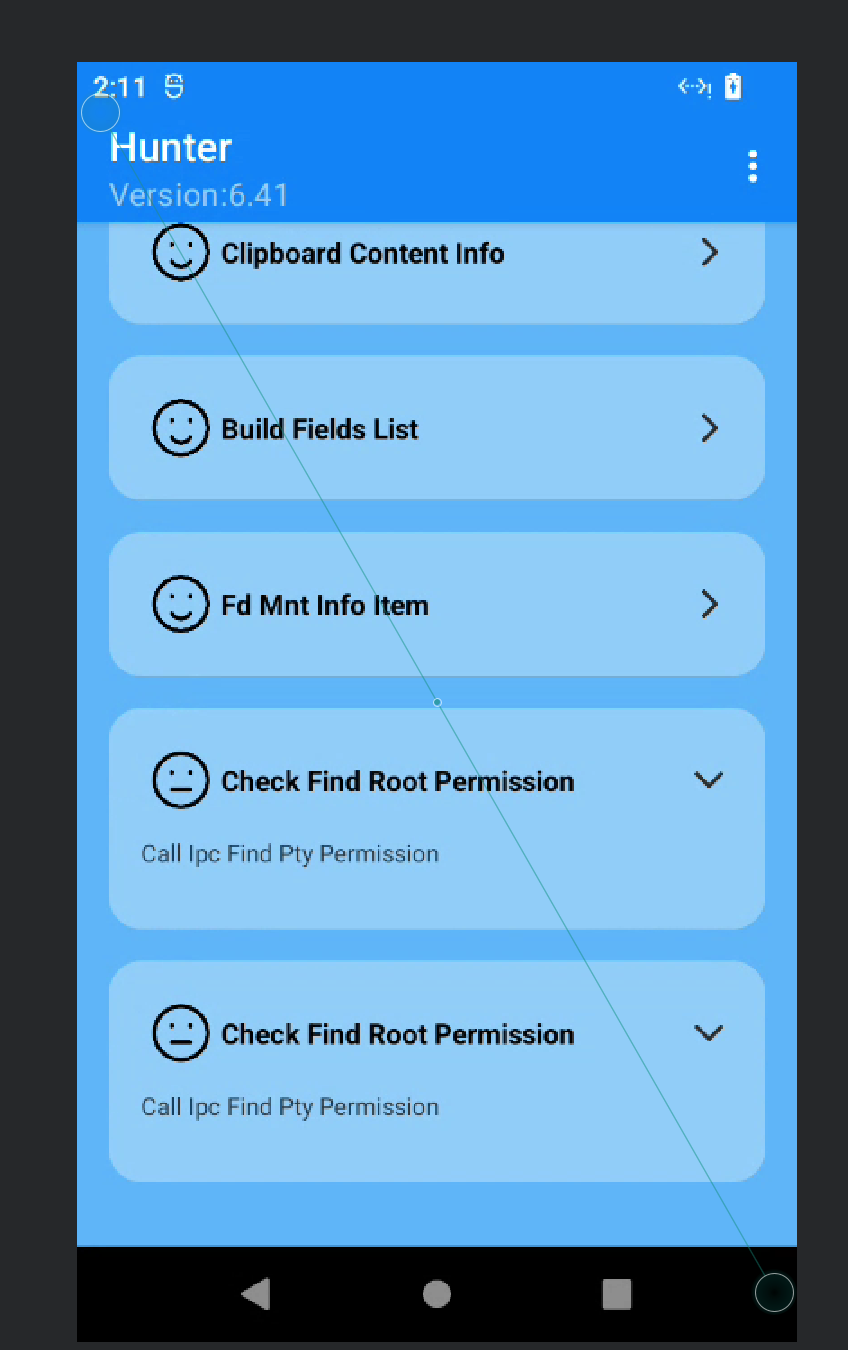

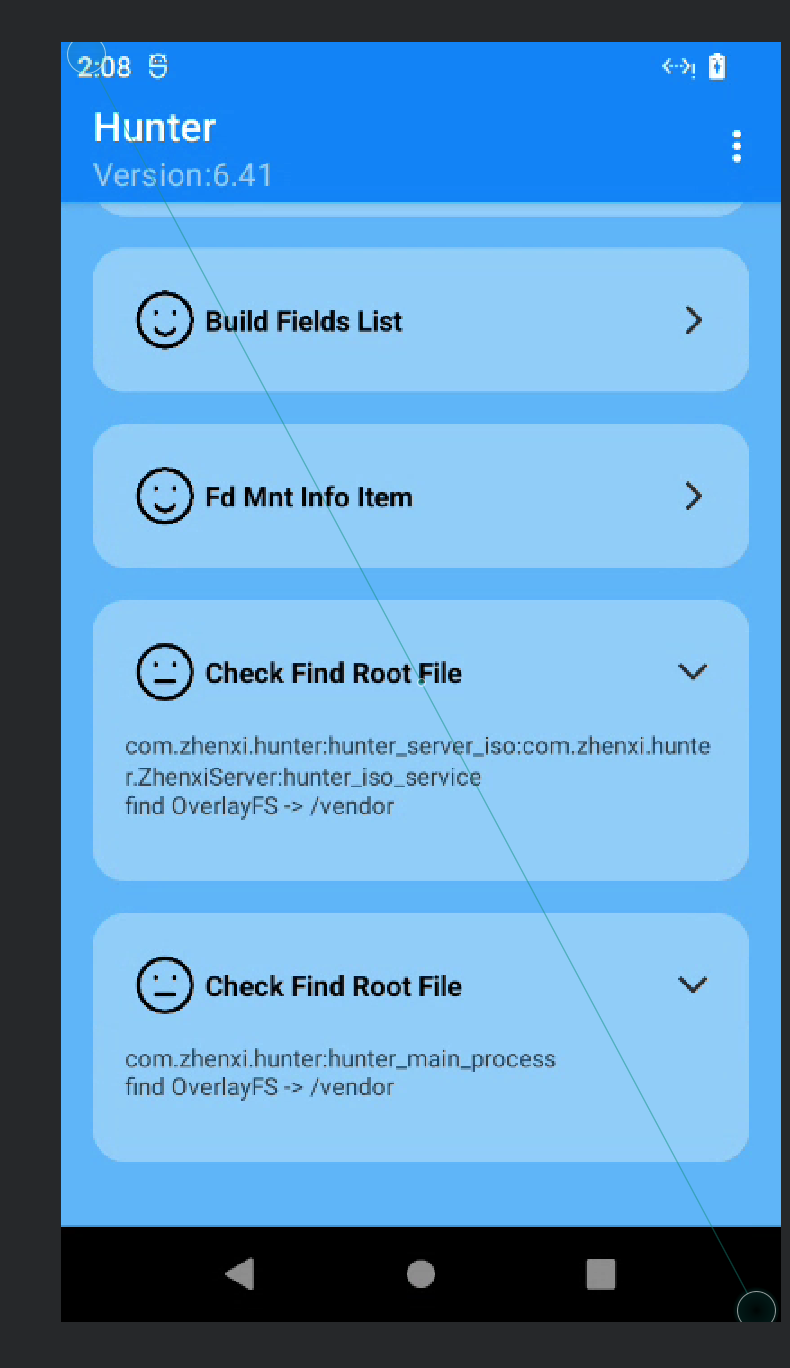

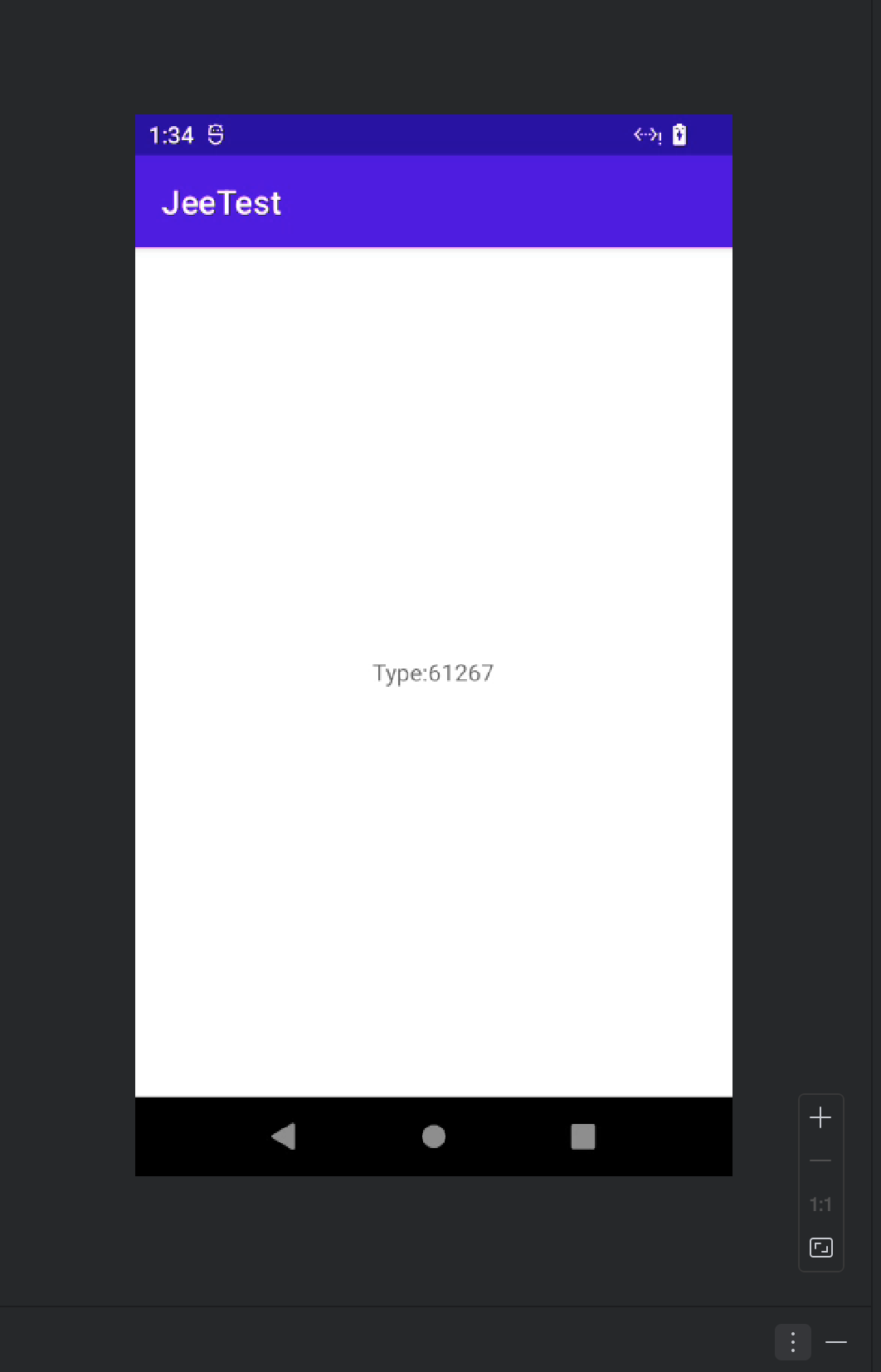

最后效果又换成vendor了实际测试下来上面的没有效果但是代码对以后的修改结构体变量有帮助
